Viper´s Pioneer DDJ-SX Traktor Mapping V.6.2 (Seyren edit)

Description and Instructions

Pioneer DDJ-SX Mapping V.6.2  for Traktor 2.60 only,   by viper9711

4 Decks, 4 FX-Unit´s



V.6.2: Small corrections on FX Presets, now usable for Deck C+D



V.6.1: Optimized Loop section for all 4 Deck´s, better Led Feedback, Snap+Quant   added to Shift+Slip Btn., Shift+CUE=Track Begin



V.6.0: Complete new FX-Preset´s, 4 FX-Units, Jogwheel Tracklist scroll



At first be sure that your unit is ready in „Mode for OTHER Software“ than Serato DJ. (Pioneer Utility Modus)

(see Pio-Manual Page 25+26 how to change the Mode, Key Lock Btn. has to light up)

Otherwise the Mapping will NOT work !!



Import the Mapping ONLY with the big Import Button otherwise your Effects won´t be in the right order and the FX-Presets won´t work as they should !

After import you´ll get 12 Solo Mappings



All main functions are mapped like the printed Labels, except:



SHIFT+Sync = Set Tempo Master

Slip Btn = Flux Mode ON/OFF

SHIFT+Tempofader= Key adjust

Censor Btn. = Shows advanced CUE Panel

Panel Select = Layout

SHIFT+CUE Monitor= Deck Flavor

SHIFT +Sampler Volume Fader= Sweep Drama Effect (FX-1)

Browser Knob = List Scroll

Browser Knob PUSH = only Browser Toggle

Push Browse Knob=let the cursor jump to search field

SHIFt+Browser Knob = Tree Scroll

SHIFT+Browser Knob PUSH = Colapse/Expand Treefolder

Back+Load Prepare = Favorits

SHIFT+Area = Add selected Track to Preparation List

SHIFT+View = Delete selected Track from Playlist (not from Libary or HDD)

SHIFT+Play/Pause on Deck A/B: for Deck C+D (easy Stop/Play for the Remix Deck´s C+D)

Push Beats Knob toggles between FX Mode Single and Group (faster, no SHIFT needed)

SHIFT+No.1 Btn= Autofade to Deck A

SHIFT+No.2 Btn.=Autofade to Deck B

Main output Volume=SHIFT+FX2 Knob

Trackend warning mapped to Censor Led`s

Beatphase Monitor mapped to Load Led´s

Shift+turn Jogwheel= Tracklist scroll

Shift+CUE= Jump to Track begin



Grid Mode:

SHIFT+SET= Set Gridmarker

SHIFT+DELETE= Delete Gridmarker

Hold Adjust+turn Jogwheel=BPM +-

Hold Slide+turn Jogwheel= Move Grid

Hold Adjust+push Slide Btn.= Beatlock ON/OFF

Hold Adjust: Shows advanced Grid Panel, to go back push Censor Btn.

FX Mode toggle (Single/Group)= Push Beats Knob



HOT CUE Pads Mode:

Hot Cue´s 1-8

Delete: Press and hold HOT CUE Mode Btn. (Modifier)



ROLL Pad Mode: Loop Presets

1-7 = Loop Presets (Slip OFF) 1-6= Flux Mode Preset´s (Slip ON)

8 = Beatjump-1



Slicer Pad Mode: FX Preset`s 4 FX-Units (all triggered)

Left+Right

<!--[if !supportLists]-->1. <!--[endif]-->Delay long

<!--[if !supportLists]-->2. <!--[endif]-->Delay T3

<!--[if !supportLists]-->3. <!--[endif]-->Gater 1

<!--[if !supportLists]-->4. <!--[endif]-->Gater 2

<!--[if !supportLists]-->5. <!--[endif]-->Beatmasher 1

<!--[if !supportLists]-->6. <!--[endif]-->Beatmasher 2

<!--[if !supportLists]-->7. <!--[endif]-->Beatmasher 3

<!--[if !supportLists]-->8. <!--[endif]-->Beatmasher 4



Group 3 Mode Left+Right (enable with Shift+slicer Btn.)

<!--[if !supportLists]-->1. <!--[endif]-->Delay long

<!--[if !supportLists]-->2. <!--[endif]-->Delay short

<!--[if !supportLists]-->3. <!--[endif]-->Filter 92LFO

<!--[if !supportLists]-->4. <!--[endif]-->Flanger

<!--[if !supportLists]-->5. <!--[endif]-->Digital LoFi

<!--[if !supportLists]-->6. <!--[endif]-->Reverb

<!--[if !supportLists]-->7. <!--[endif]-->Bass-O-Matic

<!--[if !supportLists]-->8. <!--[endif]-->Zzurup



Sampler Pad Mode:  Remix Deck´s C+D Left and Right

1-4: SlotCapture/Trigger/Mute

1-4: SHIFT:  Slot Stop/Delete/Load from List

5-8: Slot Retrigger

5-8: SHIFT: Play Mode (Loop/One Shot)



Group 4 Mode: Remix Deck´s (enable with SHIFT and Sampler Btn.)

1-4: Capture Track from the Deck above

5-8: Slot Unload



Group 2 Mode: Loop Recorder (enable with shift and Roll Btn.)

Pad 1= Rec.

Pad 2= Size

Pad 4= Delete

Pad 5 = Play/Pause

Pad 8= Undo/Redo

Sampler Volume Fader =Dry/Wet



Notes:

<!--[if !supportLists]-->-    <!--[endif]-->FX-3+4 are only for FX-Preset´s

<!--[if !supportLists]-->-    <!--[endif]-->No sound on Cue monitor ?


1.Check your output routing in Traktor preferences. Output monitor must be DDJ-SX Phone L+R


2. Check your Monitor Vol.+Mix Knob left to the crossfader in Traktor interface

- Open the preferences window takes a while- don´t worry- good things need a while-not a bug





Bug report and voting welcome

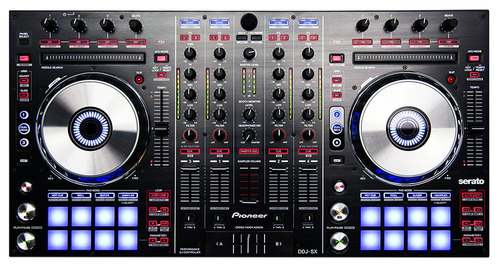

Pioneer_ddj_sx
